Description

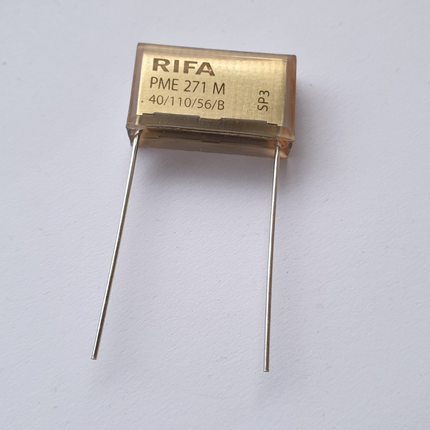

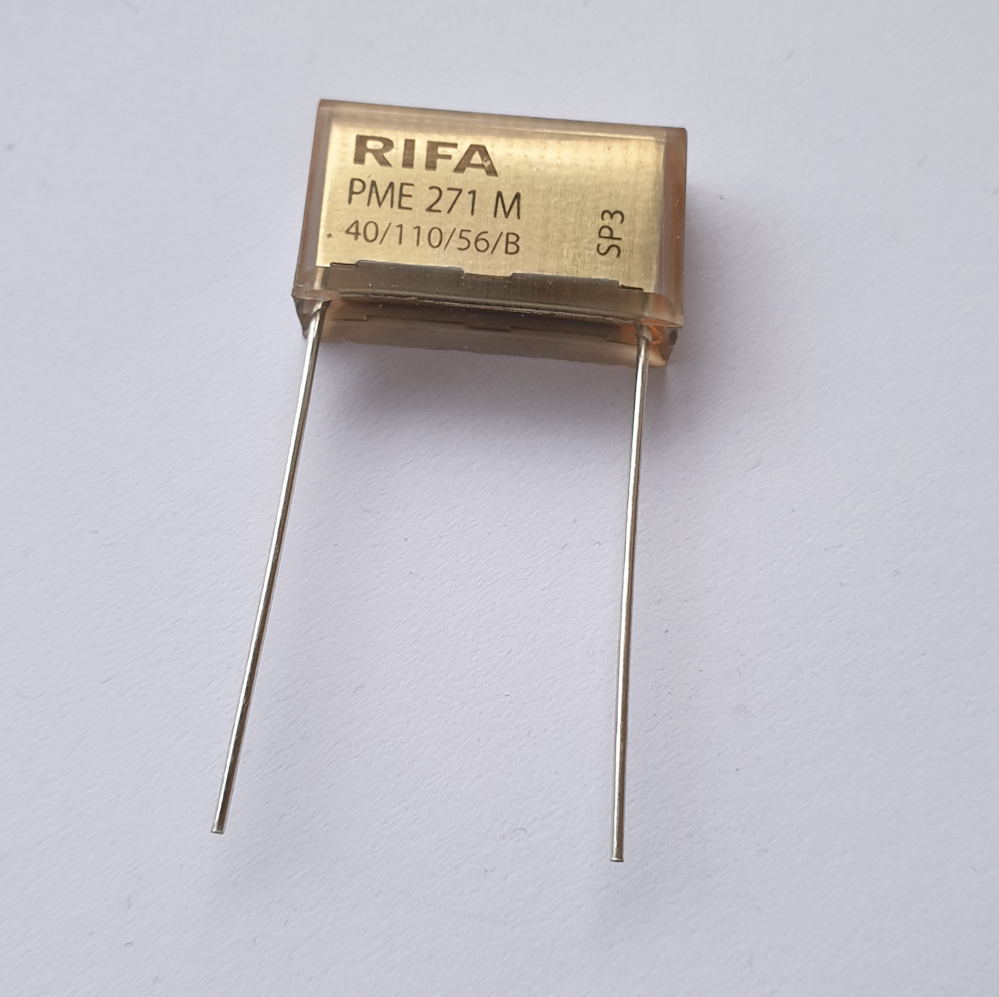

PME271M610M 0.1uF
100nF 250VAC EVOX RIFA CLASS X2 275VAC Max CAPACITOR SINGER
Product information
Capacitor used in
many applications e.g Food mixers, Singer Sewing machine foot controllers, etc.
The PME271M Series is constructed of multilayer metallized paper
encapsulated and impregnated in self-extinguishing material meeting the
requirements of UL 94 V-0.Typical applications include worldwide use in
electromagnetic interference suppression in all X2 and across-the-line
applications.
- Approvals: ENEC, UL, cUL /

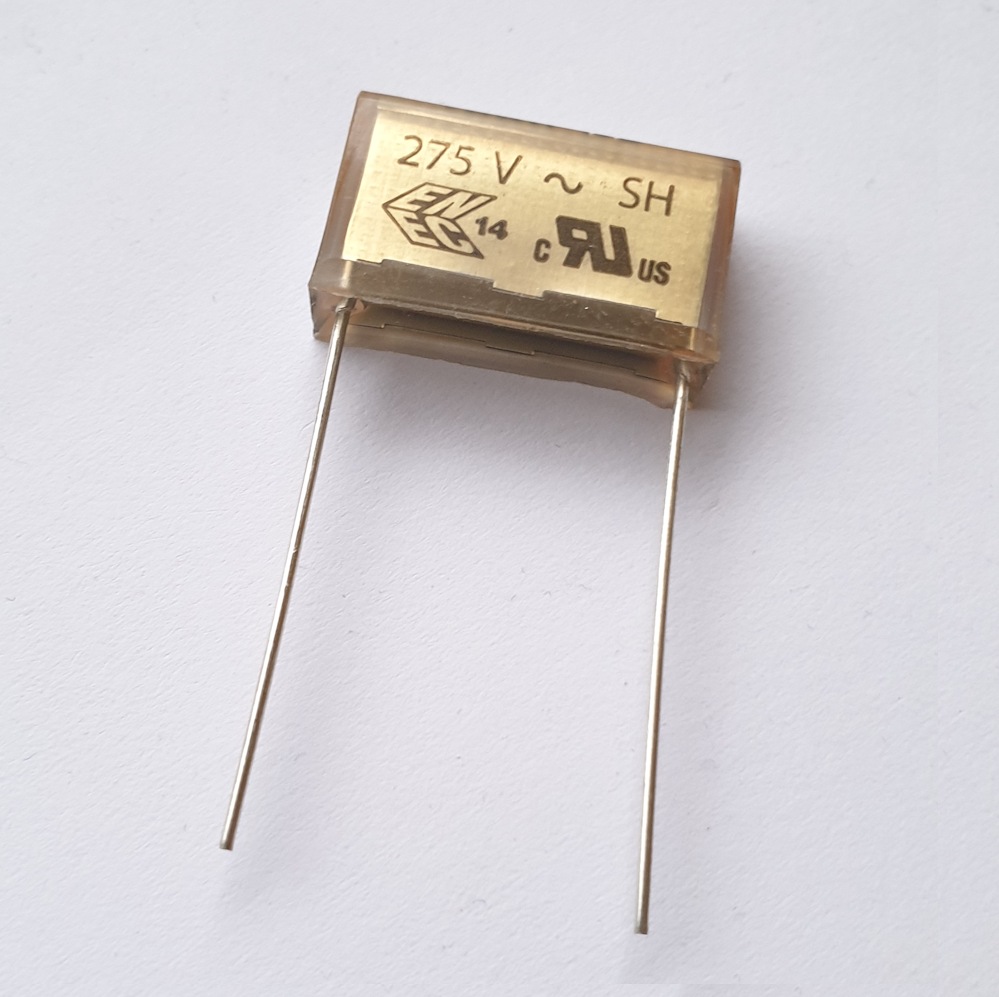

Rated voltage: 275 VAC 50/60 Hz
- Capacitance range: 0.001 -
0.6 µF / Capacitance tolerance: M = ±20% (for C <= 0.1 µF), K = ±10%
(for C > 0.1 µF) / Lead spacing: 10.2 - 25.4 mm
- Climatic category:
40/110/56, IEC 60068-1 / Operating temperature range of -40˚C to +110˚C
- RoHS Compliant and lead-free
terminations
- High dV/dt capability
- Excellent self healing
properties
- Dielectric Type: Metallized
Paper
- Capacitor Case Style: Radial
Box - 2 Pin
- Capacitance: 0.1µF
- Capacitance Tolerance: ± 20%
- Suppression Class: X2
- Capacitor Mounting: Through
Hole
- Voltage Rating X: 275VAC
- dv/dt Rating: 600V/µs
- Humidity Rating: GRADE II
(Test Condition A)
- Lead Spacing: 24mm
- Operating Temperature Min:
-40°C
- Operating Temperature Max:
110°C
- Series Name: PME271M
